10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale

Model Number : LTC210

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units per month

Delivery Time : 10-15 working days

Packaging Details : nude

Warranty : 1 YEAR

Front axle load : 5 ton

Rear axle load : 5 ton

Drum width : 1730mm

Engine : Cummins 4BT3.9

Engine horse power : 75kW

Contact Now

LTC210 hydraulic vibratory rollers are manufactured according to international advanced technology and using
imported components from abroad. The machine is a double drums tandem vibratory roller. It is primarily used for
the compaction of road bituminous course, sand gravel mixtures and RCC material. Being a universal compaction
equipment for highway, municipal road, park area and industry ground etc.

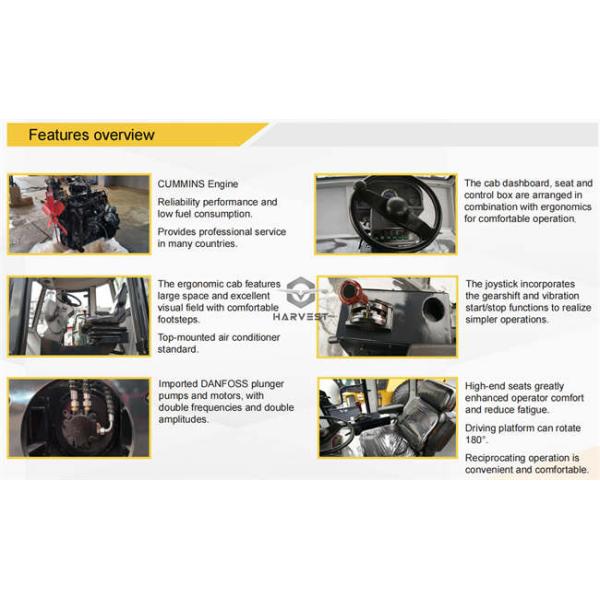

► Full hydraulic two wheels drive and vibration. Double frequency and double vibration system;
► Reliable CUMMINS diesel engine for convenient operation and maintenance;
► Hydrostatic center articulated steering (optional patented crab mechanism);
► Cabin is comfortable and spacious with air conditioner, and the flexible steering seat facilitate the operation;
► The driver's cabin can be turned on one side as a whole, to facilitate maintenance;
► For-type frame, good hold-down property;
► Hydraulic plunger pump and motors are made by American manufacturer DANFOSS.

10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale

LTC210
Operating mass kg 10000
Front axle load kg 5000
Rear axle load kg 5000
Static linear load N/cm 238
Form of frame Fork-type
Water tank capacity L 2x400
Fuel tank capacity L 80
Hydraulic tank capacity L 65
Vibration frequency mm
High ampl. 0.67
Low ampl. 0.34
Vibration frequency HZ
High ampl. 45
Low ampl. 50
Centrifugal force kN
High ampl. 90x2
Low ampl. 69x2
Travel speed Km/h 0-10
Turning radius mm 6000
Grade ability % 40
Steering angle . +30
Drum diameter mm 1150
Drum width mm 1730
Transverse swing angle of the vibrating wheel . +8
Type of water spray mm Pressure
Wheelbase mm 3217
Overall dimension mm 4558x1840x2674
Ground clearance mm 258
Diesel model Cummins 4BT3.9
Diesel power kw 75
Diesel speed R/min 2400

Deatiled Introduction of 10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale

10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale10 Ton Hydraulic Double Drum Vibratory Road Roller LTC210 for Sale
